อุปกรณ์ต่อพ่วงวงกล้องจุลทรรศน์แสดงผลที่จอคอมพิวเตอร์,โปรเจคเตอร์,ทีวี

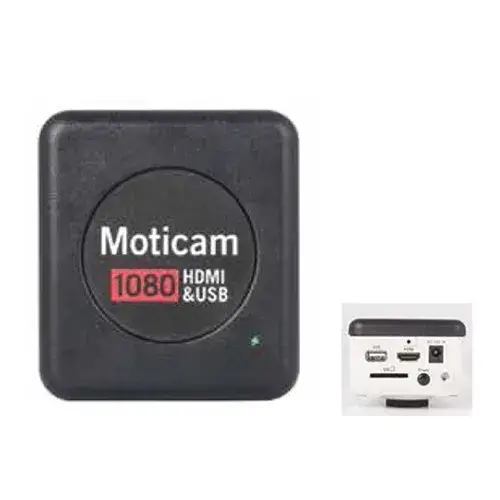

Moticam 1080 (HDMI&USB)

  Sensor Type : CMOS

  Sensor Size : 1/2 .8”

  Resolution : 2.0 MP

  Imaging Area : 6.4 mm (Diagonal)

  Capture Format (on SD-Card) : Still Image 1980×1080 (2.0MP)/Video Full HD 1980×1080 (2.0MP)

  Live Display Mode (Through USB) : 1920×1080 (Full HD)@30 fps*

  Live Display Mode (Through HDMI) : 1920×1080 (Full HD)@60 fps*

  Pixel Size : 2.8µm x 2.8µm

  Scan Mode : Progressive

  Data Transfer : HDMI (1080p) and USB2.0

  Exposure Time : 0.06ms ˜40ms with Auto Exposure mode 0.06ms ˜ 999ms with Manual Exposure mode

  Operating Temperature : From-10 to+60 Degrees Celsius non condensing

  Max. Signal to Nosie Retio : 40dB

  Dynamic Raange : 71dB

  Sensitivity : 0.51V (Typical at 1/30 sec)

  Slot : SD Card (max 32Gb)

  Buttons : On/Off

  Support Device : Twain and Direct Show Driver

  Supported OS : Microsoft Windows XP SP3/Vista/7/8/10 and MAC OSX&Linux

  Minimum Computer Requirement : 2GHz dualcore – RAM memory 2GB-Video Memory min. 512MB

  Lens Mount : C-Mount

  Focusable Lens : 12mm.

  On-board software : Standard tools Image adjustments (AE/AWB) Advanced settings

  Power supply : 12V (External Power supply)

  Package Includes : CS Ring Adaptor,HDMI cabel,Focusable Lens,30mm and 38mm Eyepiece Adapters, USB 2.0 Cable,Calibration Slide,Macro Tupe, Motic Images Plus 3.0 for PC/OSX/Linux
